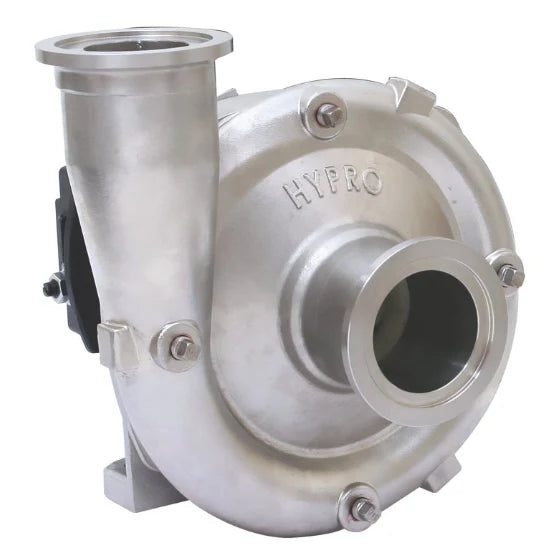

Hypro Stainless Flange Centrifugal Pump - 9306S-HM5C-U

9306S Stainless series pedestal-mount centrifugal pump with hydraulic motor fitted (for open centre, closed centre and load-sensing systems), Stainless Steel housing with GTX impeller

• Liquid port sizes: 2” Flange Inlet(M220): 2” Full Port outlet (M220)
• Hydraulic motor: internal gear gerotor; max motor psi = 3000
• Hydraulic ports: 1/2″ NPT inlet, 3/4″ NPT outlet,
• Hydraulic motor seal: double-lip Teflon
• Weight: 15kg

• Max fluid temp: 60 C
• Max pressure: 9.6 Bar (140 psi)
• Max L/min flow: 803
• Max hyd flow required: 64.4 L/min
• 803 L/min flow at 4.1 Bar pressure and 60.6 L/min hydraulic flow
• Internal threaded
