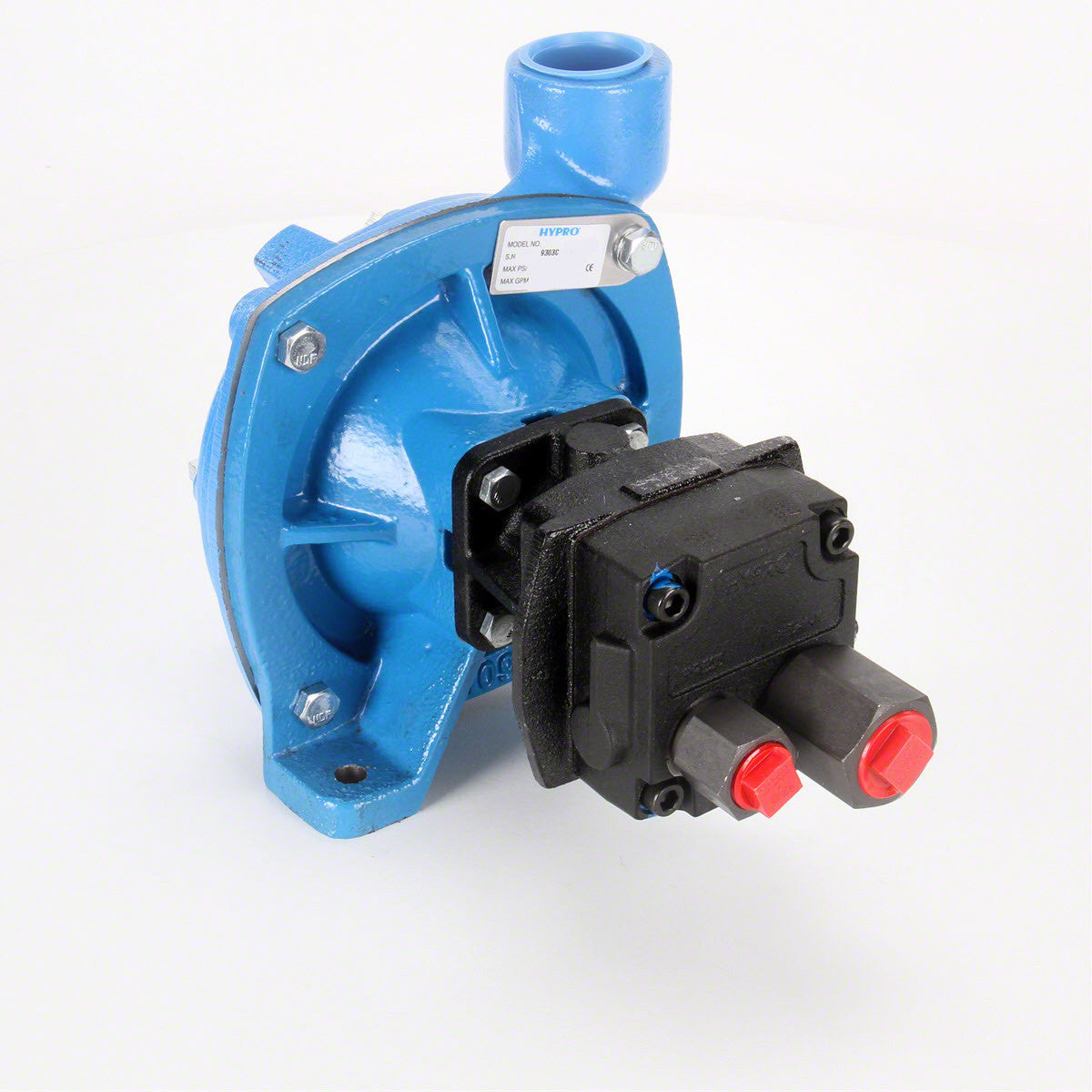

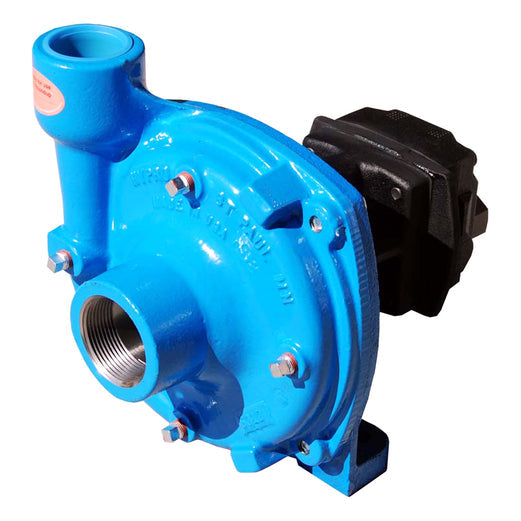

HYPRO cast iron centrifugal hydraulic driven pump. Our hypro pumps are fitted standard with the H/D silicon carbide lifeguard seals. This will increase the pumps dry-run time and will provide a lot better abrasive resistance. Life Guard seals are the OEM standard on most sprayers
- Equipped with Life Guard seals for longer seal life
- Cast iron housing with nylon impeller
- Liquid port sizes: 1-1/2" NPT inlet; 1-1/4" NPT outlet
- Hydraulic motor: internal gear gerotor; max motor psi = 3000
- Hydraulic ports: 1/2" NPT inlet, 3/4" NPT outlet
- Hydraulic motor seal: double-lip Teflon
- Weight: 11.8kg
Fitted to a number of OEM sprayers
- Max fluid temp: 60 C
- Max pressure: 9 Bar (130 psi)
- Max L/min flow: 432
- Max hyd flow required: 49.2 L/min
- 397 L/min flow at 3.4 Bar pressure and 45.4 L/min hydraulic flow
