Hypro Centrifugal Pump - 9303C-HM5C-B

Hypro Centrifugal Pump - 9303C-HM5C-B

Regular price
$1,595.00
Sale price
$1,595.00
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

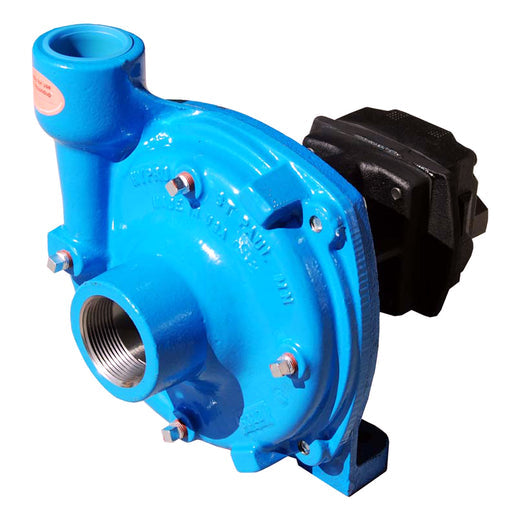

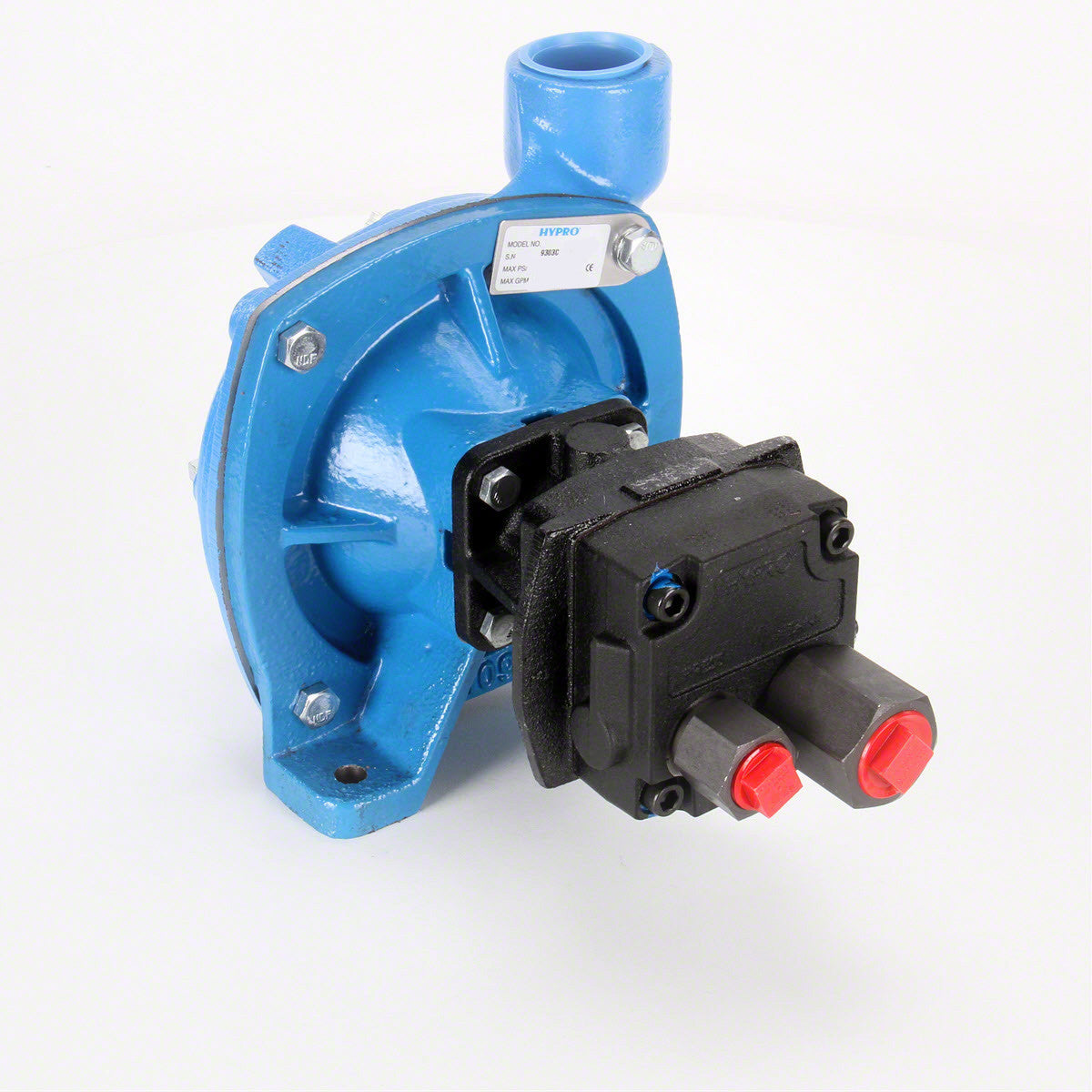

HYPRO cast iron centrifugal hydraulic driven pump. Our hypro pumps are fitted standard with the H/D silicon carbide lifeguard seals. This will increase the pumps dry-run time and will provide a lot better abrasive resistance. Life Guard seals are the OEM standard on most sprayers

  • Equipped with Life Guard seals for longer seal life
  • Cast iron housing with nylon impeller
  • Liquid port sizes: 1-1/2″ NPT inlet; 1-1/4″ NPT outlet
  • Hydraulic motor: internal gear gerotor; max motor psi = 3000
  • Hydraulic ports: 1/2″ NPT inlet, 3/4″ NPT outlet
  • Hydraulic motor seal: double-lip Teflon
  • Weight: 11.8kg

Fitted to a number of OEM sprayers.

  • Max fluid temp: 60 C
  • Max pressure: 10 Bar (145 psi)
  • Max L/min flow: 556
  • Max hyd flow required: 60.6 L/min
  • 450 L/min flow at 4.1 Bar pressure and 56.8 L/min hydraulic flow
