Annovi Reverberi Diaphragm Pump - AR503-SP

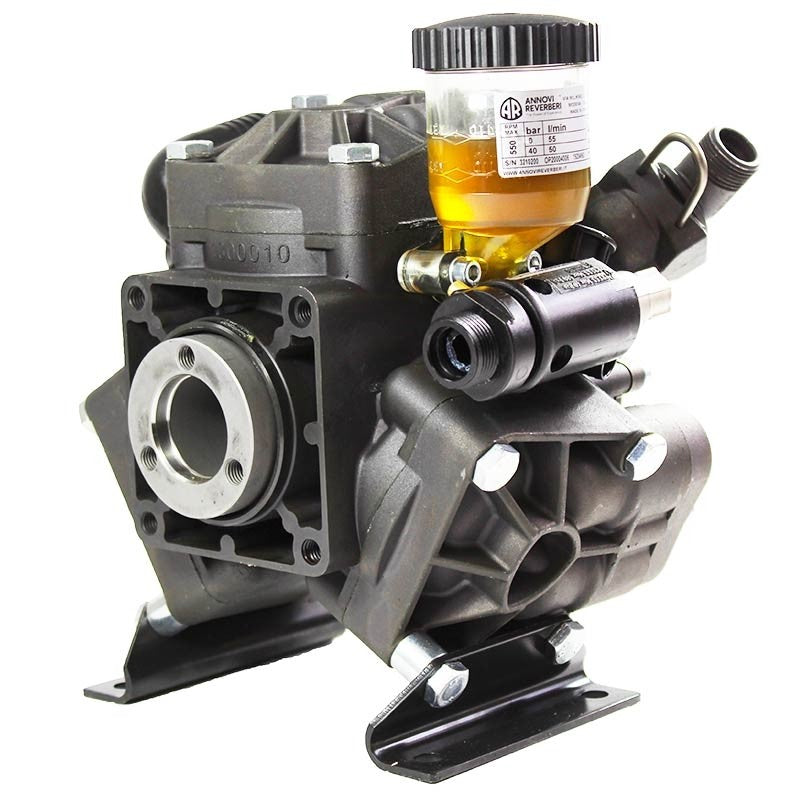

Annovi Reverberi AR503 diaphragm pump
3 x BlueFlex long life diaphragms
Performance:
54 lpm
40 bar (580 psi)
550 rpm
5.5 hp requirement
Features:
3 diaphragms
60 degrees C max temperature
Self-priming
OK to run dry
Pump ports:
3/4 inch BSP(M) outlet port
30 mm inlet hose tail
Oil type:
SAE 30 engine oil

SP - version equipped with flange to attach gearbox or shaft kit (not included)
