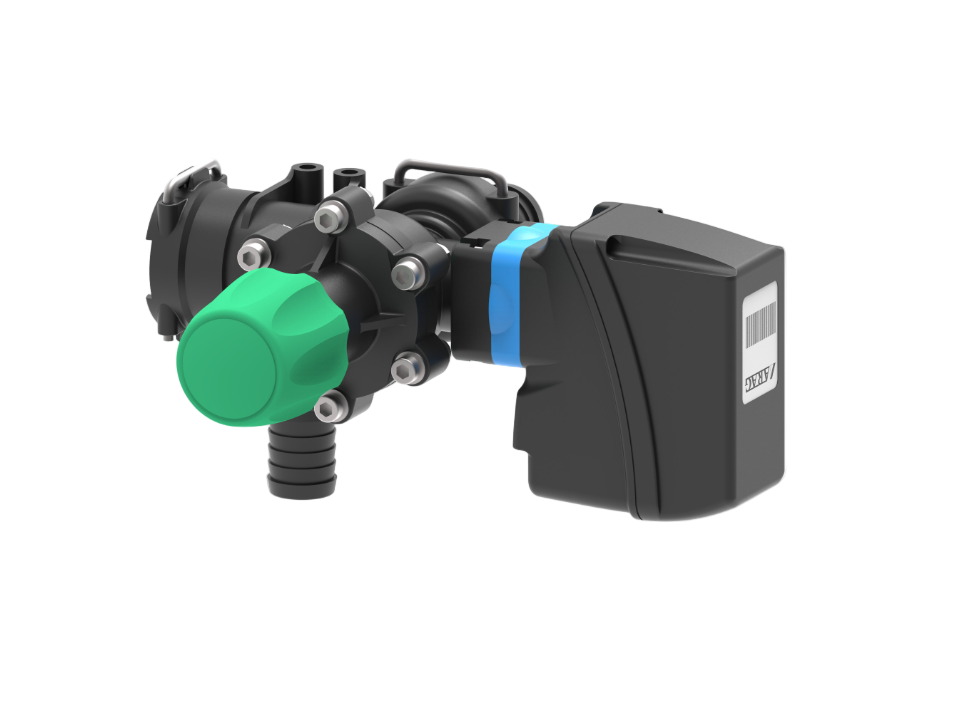

ARAG T5 Relief & Manual Dump Valve - 871050250
ARAG T5 Relief & Manual Dump Valve - 871050250
No reviews
Regular price
$639.00 AUD
Regular price
Sale price
$639.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Dump Valve / PRV / Inlet assembly
| Part number | 871050250 |
| Unit | Each |
| Long description | Arag electric on-off valves |
| Application | - Gear motor: controls the opening/closing of the main control valve and consequently the discharging of the liquid via the system. (Open valve: the liquid is delivered to the operating circuit; closed valve: the liquid is delivered to the tank) - Pressure relief valve: Releases the available liquid surplus when the programmed maximum pressure is reached. The valve can be adjusted manually - Suitable for screwed fittings When using fittings in modular form, use an adapter (463/ T5 or 464/ T5) |
| Properties | - Housing made from fibreglass-reinforced nylon - Inner parts made from Delrin® and Inox steel AISI 303 - Viton® seals |
| Consists of | - Composed of an electrical main switch valve (with gear motor) with adjustable pressure-relief valve |
| Connection | T5 |
| Flow max. | 150 l/min |
| Hose Ø bypass | 30 mm |
| Hose Ø input | 25 mm |
| max. Flow | 150 l/min |
| P max. (bar) | 20 BAR |
| Power consumption | 0.5 A |
| Voltage | 12 V |
| Response time | 0.6 s |
