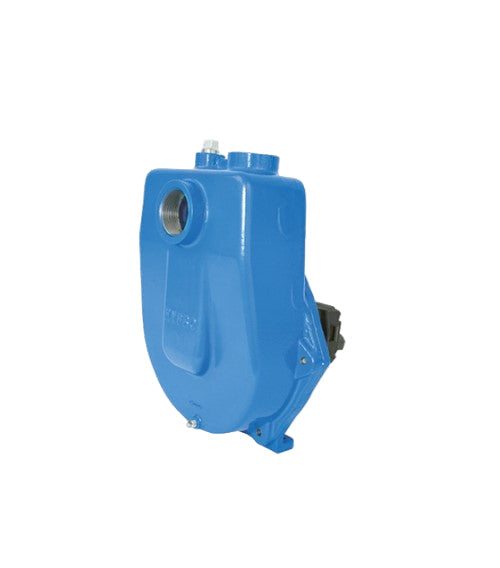

Hypro Centrifugal Pump - 9305C-HM3C-SP

HYPRO cast iron Self Priming centrifugal hydraulic driven pump.

• Cast iron housing with nylon impeller
• Liquid port sizes: 2″ NPT inlet; 1-1/2″ NPT outlet
• Hydraulic motor: internal gear gerotor; max motor psi = 3000
• Hydraulic ports: 1/2″ NPT inlet, 3/4″ NPT outlet which must be plumbed free to tank
• Hydraulic motor seal: double-lip Teflon
• Weight: 21.8kg
• Max fluid temp: 60 C
• Max pressure: 10.6 Bar (154 psi)
• Max L/min flow: 673
• Max hyd flow required: 72 L/min
• 511 L/min flow at 3.4 Bar pressure and 64 L/min hydraulic flow
