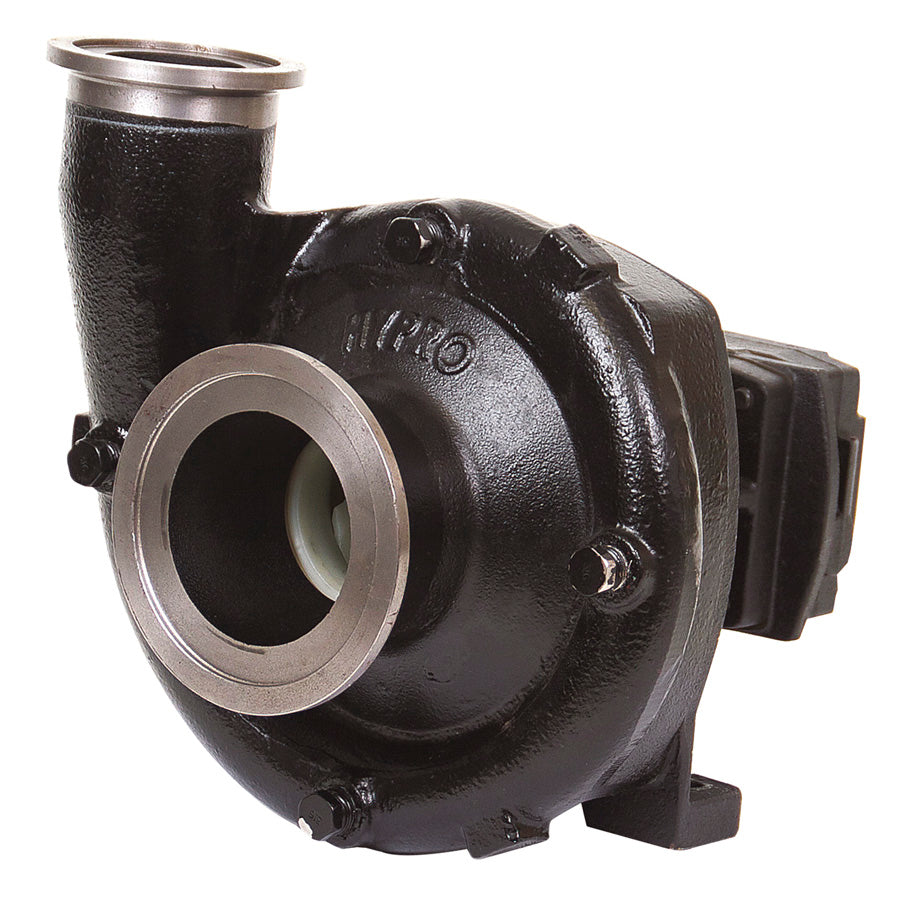

Hypro Centrifugal Pump - 9306C-HM5C-BU

Hypro Centrifugal Pump - 9306C-HM5C-BU

Regular price $2,547.18 AUD
Regular price Sale price $2,547.18 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

9306C series pedestal-mount centrifugal pump, silicon carbide life guard seal with hydraulic motor fitted (for open centre, closed centre and load-sensing systems), cast iron housing with nylon impeller

  • Liquid port sizes: 220 Universal Flanged Inlet: 220 Universal Flanged outlet
  • Hydraulic motor: internal gear gerotor; max motor psi = 3000
  • Hydraulic ports: 1/2″ NPT inlet, 3/4″ NPT outlet,
  • Hydraulic motor seal: double-lip Teflon
  • Weight: 15kg

Fitted to a number of OEM sprayers

  • Max fluid temp: 60 C
  • Max pressure: 9.6 Bar (140 psi)
  • Max L/min flow: 803
  • Max hyd flow required: 64.4 L/min
  • 803 L/min flow at 4.1 Bar pressure and 60.6 L/min hydraulic flow
  • Internal threaded
