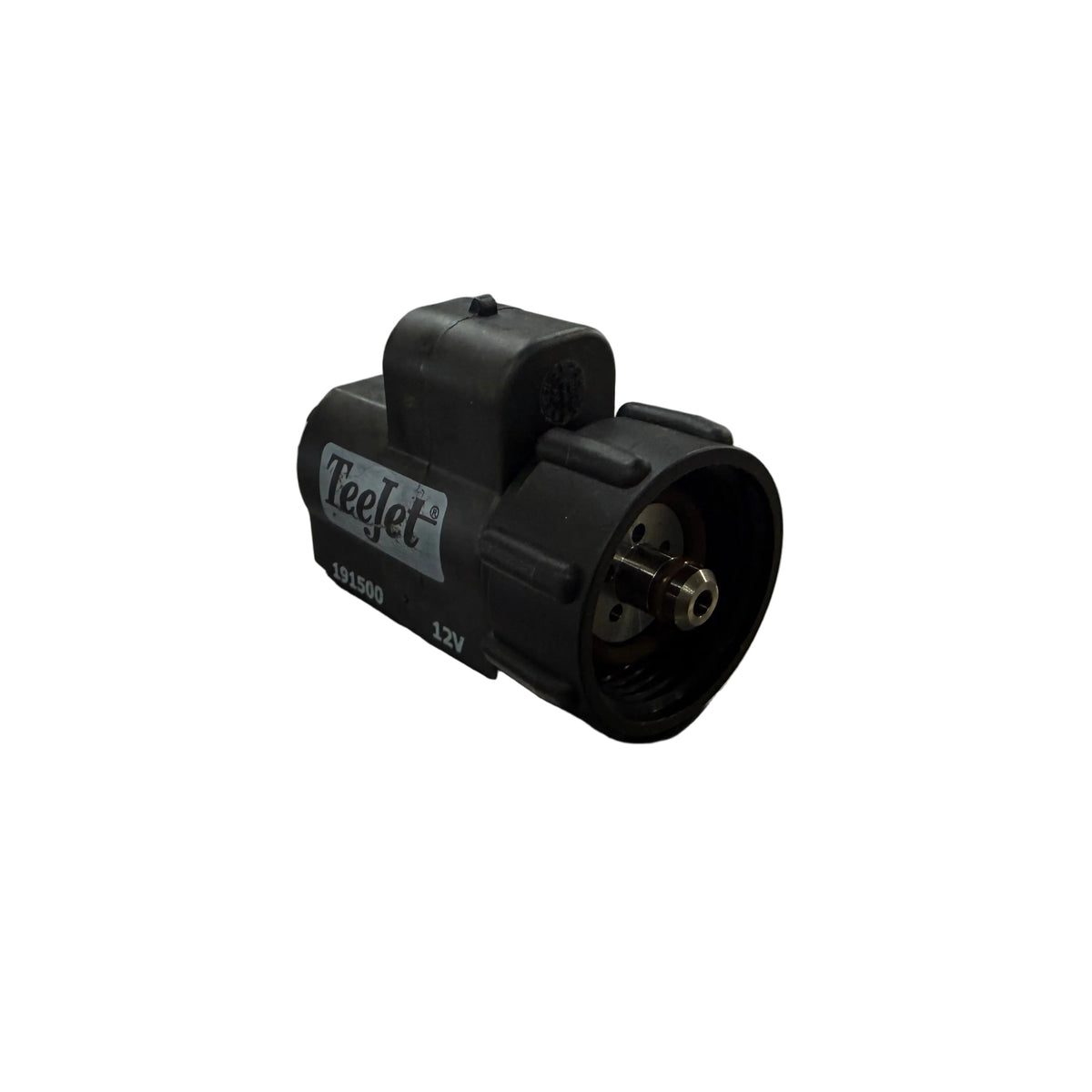

TeeJet 12v E-Chemsaver Solenoid Valve (to suit Wilger nozzle body) 191500-1-12

(Replaces 55295 series) TeeJet 115880-1-12, E-Chemsaver 12V, fits Wilger nozzle bodies.

TeeJet solenoid valves are electronically controlled to accurately execute your spray strategy more efficiently and sustainably resulting in greater yields and less waste.

191500 Series - DynaJet Valve

• Electric solenoid shutoff valve
• Valve is normally closed for safety
• Maximum 100 psi (7 bar) spraying pressure at minimum voltage (12v)
• 0.6 GPM (2.27 LPM) at 5 PSI (0.34 Bar) pressure drop
• 0.8 GPM (3.18 LPM) at 10 PSI (0.69 Bar) pressure drop
• All wettable parts are stainless steel or Viton® equivalent
• Current draw of 0.9 AMPS (10 watts) at 12 volts
• Voltage energizes the solenoid coil to open the valve
• Removal of power allows a spring to close the valve
• Requires 98552 cable w/ 2-pin female superseal 1.5 connector
