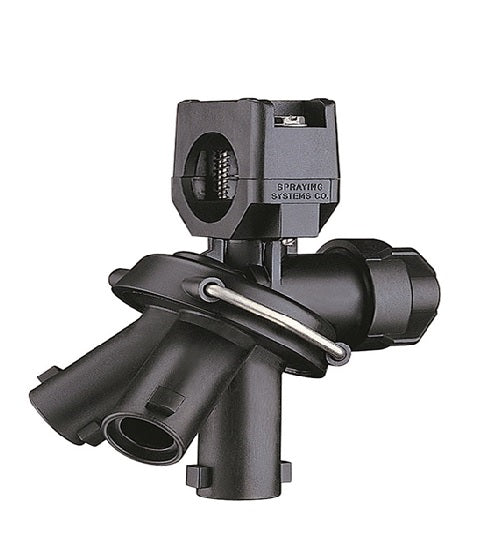

TeeJet Triple nozzle body Split Eyelet 24216A-*-NYB

TeeJet Triple nozzle Body 24216A- * - NYB is a very common nozzle holder that can fit many brands in Australia, used as standard equipment by many Manufactures like Croplands, Amazone

• Features Chem-saver drip-free shutoff.
• Requires 10 PSI (0.7 bar) at the nozzle to open check valve.
• Standard diaphragm of EPDM with optional Viton available.
• Mounts to a 3/8" (9.5 mm) hole drilled in pipe or tubing.
• Maximum operating pressure of 300 PSI (20 bar).
• Includes a mounting hole in upper clamp sub-assembly for mounting to flat surfaces.

Below is a breif I.D. Chart to assist you in selecting the correct Nozzle to Pipe diameter.

For example 1/2" pipe has a measured O.D. of 21.4mm

Please contact us if you are not confident of your pipe diameter before ordering and causing yourself frustration with receiving incorrect size nozzle holders

Pipe Measured Diameter OD (mm)          Nozzle Body Size

21.4                              =                       1/2"

26.7                              =                      3/4"

33.6                              =                       1"
