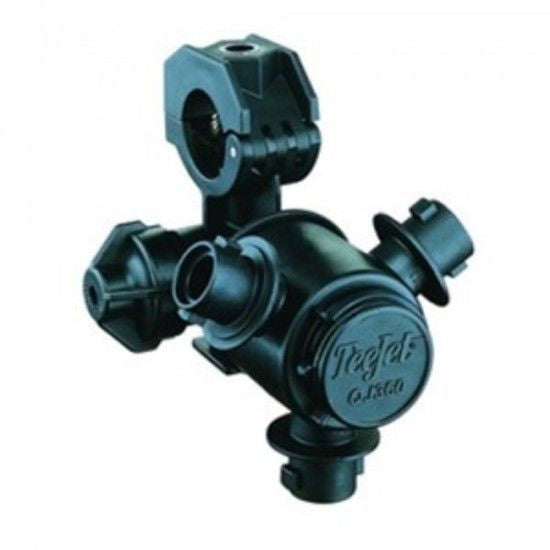

TeeJet QJ360 Triple Wet Boom Nozzle Body QJ363C

TeeJet® triple wet boom nozzle body in 1/2″- 3/4″ and 1″ sizes.

• Available with either 3 spray positions for easy change of spray tips or quick boom flushing.
• Postivie shutoff between each spray position.
• Automatic spray alignment using flat fan spray tips.
• Maximum operating pressure of 300 psi (20 bar).
• Available in 1/2′- 3/4″-  or 1″ pipe connections.
• Includes ChemSaver diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 psi (0.7 bar).
• Also available with optional 56720 ChemSaver air shutoff valve.
• 2.25 gpm (5.2 l/min) with 5 psi (0.35 bar) pressure drop.
• Mounts to a 3/8″ (9.5 mm) hole drilled in pipe or tubing.
• Molded hex socket in upper clamp for attaching to flat surfaces.
• Hinged upper clamp reduces assembly time and fits inside common boom channels.
• 1” bodies commonly used on all models of Miller Nitro Sprayers!
